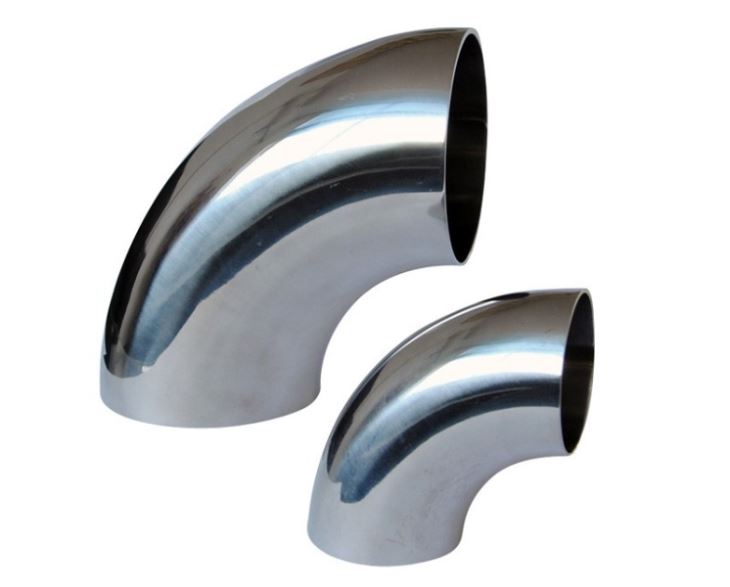

45~180 Degree Elbow

An elbow is a pipe fitting installed between two lengths of pipe or tubing to allow a change of direction, usually a 180°,  90° or 45° angle, though 22.5elbows are also made. The ends may be machined for butt welding, threaded (usually female), or socketed, etc. When the two ends differ in size, the fitting is called a reducing elbow or reducer elbow.

Elbows are categorized based on various design features as below:

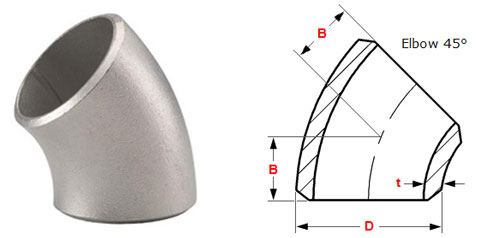

     45 Degree Elbow --- where change in direction required is 45°

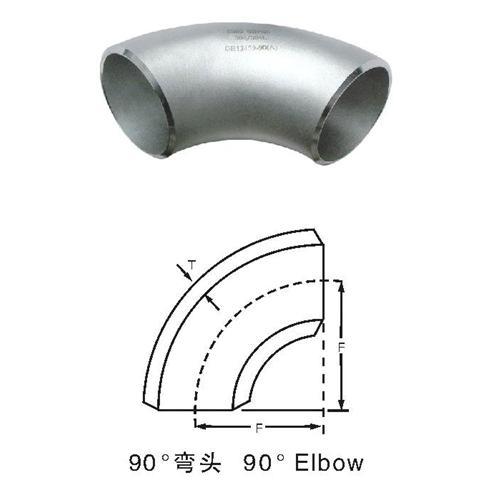

     90 Degree Elbow --- where change in direction required is 90°

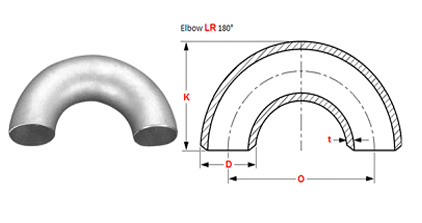

     180 Degree Elbow--- where change in direction required is 180°

Specification:

     Seamless Elbow: 1/2”-24”, DN15-DN600, Butt Welded Elbows(SEAM)24”-72”, DN600-DN1800

     SCH10 to SCH160, XXS.

Product Type:

     LR45degree, 90degree, 180degree.

     SR5degree, 90degree, 180degree.

Steel Standard:

     ASME B16.9, ASTM A234, ASTM A420, ANSI B16.9, ANSI B16.25, ANSI B16.28, MSS SP75, JIS B2311, JIS B2312, JIS B2313, EN 10253-1, EN10253-2.

Grade and Material:

ASTM Standard:

     Stainless steel: ASTM A403 WP304,304L, 316, 316L, 321. 1Cr18Ni9Ti, 00Cr19Ni10, 00Cr17Ni14Mo2.

Alloy Steel: A234WP12, A234WP11, A234WP22, A234WP5, A420WPL6, A420WPL3.

DIN Standard:

     Stainless steel: 1.4301, 1.4306, 1.4401,1.4571.

     Alloy Steel: 1.7335, 1.7380, 1.0488, 1.0566.

JIS Standard:

     Stainless Steel: SUS304, SUS304L.SUS316, SUS316L, SUS321.

     Alloy Steel: PA22, PA23, PA24,  PA25, PL380.

GB Standard:

     10#, 20#, 20G, 23G, 20R, Q235, 16Mn, 16MnR, 1Cr5Mo, 12Crmo, 12CrMoG, 12Cr1Mo.

     Surface Finishing: Transparent Oil, Rust-Proof Black Oil or Hot Galvanized.

Shanghai Tengri Steel Co., Ltd is one of the largest Manufacturer, Supplier, Exporter, Stocker for Angle, Bar, Beam, Coil , Strip , Plate, Sheet ,Wire , Pipe, Tube, Flanges, Fittings in China more than 10 years . Our products have been widely used in Boiler & Heat exchanger, Decoration, Construction, Oil and Chemical industry, Food industry, Pharmaceutical industry, Ship-building and automobile manufacturing, Water transportation systems etc .

Main produce ---

 Angle, Bar, Beam, Coil , Strip , Plate, Sheet ,Wire , Pipe, Tube, Flanges, Fittings etc

Standard involved ---

GB, ASTM ,AISI , AWWA , EN , BS, GOST, DIN , KR , JIS - Custom products is availiable !

Certificates –

BV, SGS , ISO9001, ISO14000, OHSAS18001 , API, DNV, BV, SGS, TUV, ABS, LR, GL, TS,PED etc.

Why Us ?

Most Competitive price , Strictly quality control, Full set of tech data sheet , Project management chart , ITP, Logistics and stock planning ,Experienced staff , Delivery schedule , Package details , High quality products and Excellent service
