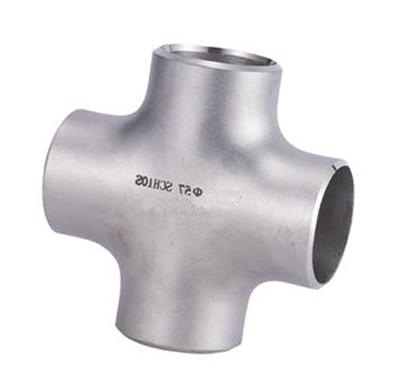

Cross Pipe

Cross fittings are also called 4-way fittings. If a branch line passes completely through a tee, the fitting becomes a cross. A cross has one inlet and three outlets, or vice verse. They often have solvent welded socket ends or female threaded ends.

Cross fittings can generate a huge amount of stress on pipe as temperature changes, because they are at the center of four connection points. A tee is more steady than a cross, as a tee behaves like a three-legged stool, while a cross behaves like a four-legged stool. (Geometrically, "any 3 non-collinear points define a plane" thus 3 legs are inherently stable.) Crosses are common in fire sprinkler systems, where stresses caused by thermal expansion are not generally an issue, but not in plumbing, due to their extra cost as compared to using two tees.

Htongsteel has emerged as the one stop solution leading provider for all your pipe cross requirements. We are one of the largest exporters & distributors of pipe cross in China. Our products have been widely used in many fields both at home and abroad. Each department are under perfect management and fully automated production so as to offer the Best Quality Products and Prompt Services to our Clients.

Size:

Seamless: 1/2”-24”, Welded:24”-96”

Thickness:

SCH10-XXS

Materials:

Carbon Steel: ASTM A234 WPB,A234 WPC,A420 WPL6.

Stainless Steel: ASTM A403 WP304, 304L, 316, 316L, 321.

Alloy Steel: ASTM A234 WP12, WP11, WP22, WP5, WP9, WP91.

Standard:

ASME B16.9, ASME B16.25, MSS SP-75, DIN2615, JIS B2311, JIS B2312, JIS B2313.
